Presetting tools for CNC

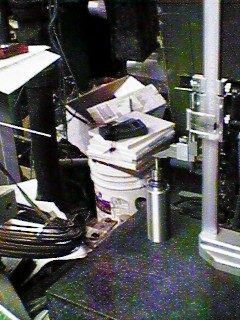

Using the vernier height gauge to measure the tool length. The tool in this case is a center drill and countersink, held in an end mill holder, and the holder is inserted into the preset fixture, which has an R-8 taper socket in it.

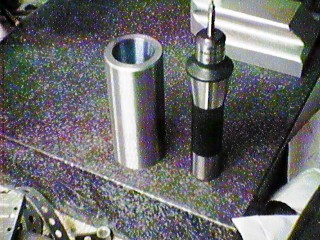

The end mill holder removed from the preset fixture..
